With DXM10-56-TN-FX
Maximum Efficiency in Every Environment

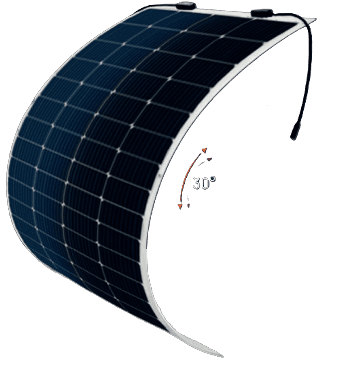

Daxler Energy’s flexible solar panel is ultra-lightweight and durable, easily adaptable to various surfaces. Thanks to N-Type Topcon cell technology, it delivers strong performance even under low light. With IP68 protection and advanced material structure, it stands up to harsh weather conditions.
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
Flexible Solar PanelFlexible Solar Panel
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
DXM10-56-TN-FXDXM10-56-TN-FX
ELECTRICAL CHARACTERISTIC
| Module Type | DXM10-56-TN-FX | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STC | STC | STC | STC | |||||||||||||||
| Maximum Power (Pmp) | 210 | 215 | 220 | 225 | ||||||||||||||
| Open-Circuit Voltage (Voc) | 40,95 | 41,09 | 41,19 | 41,25 | ||||||||||||||
| Short-Circuit Current (Isc) | 34,95 | 35,50 | 36,21 | 36,76 | ||||||||||||||
| Maximum Power Voltage (Vmp) | 6,01 | 6,06 | 6,09 | 6,12 | ||||||||||||||
| Module Efficiency | 19,16% | 19,62% | 20,07% | 20,53% | ||||||||||||||
| Power Tolerance | +0 ~5 W | |||||||||||||||||
| Maximum System Voltage | 1500V DC | |||||||||||||||||
| Maximum Series Fuse Rating | 15 A | |||||||||||||||||
Standard Test Conditions
Irradiance 1000W/m², Cell temperature 25°C, AM=1.5
STC
Irradiance 1000 W/m², Cell temperature 25°C, Air Mass AM=1.5
KEY FEATURES
Lightweight and flexible design: Can be easily mounted on various surfaces.
High efficiency: Delivers strong performance even under low light conditions with N-Type Topcon cells.
Durable materials: Transparent and rigid frontsheet provides extra protection.
Waterproof and dustproof with IP68 junction box.
Easy installation: Compatible with MC4 connectors and can be mounted using adhesive or hanging kits.
Wide application: Ideal for boats, caravans, tents, rooftops, and portable energy systems.
Eco-friendly: Provides sustainable solutions with renewable energy.
Ultra-thin design: Lightweight structure allows easy installation on any surface.
MECHANICAL PROPERTIES

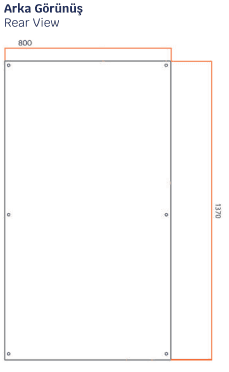

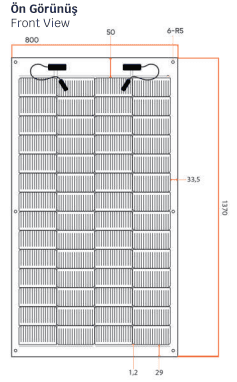

| Dimensions | 1370 × 800 × 2 mm |
| Weight | 4.2 kg |
| Cell Type and Size | N-Type 182×91 mm (56 pcs) |
| Junction Box | IP68, 2 Diodes |
| Output Cables | 4.0 mm², (+)250/(-)350mm (Vertical) or (+)1300/(-)1350 mm (Horizontal) |
| Connectors | Stäubli MC4 EVO2 |
| Mounting | Stainless steel eyelets |
